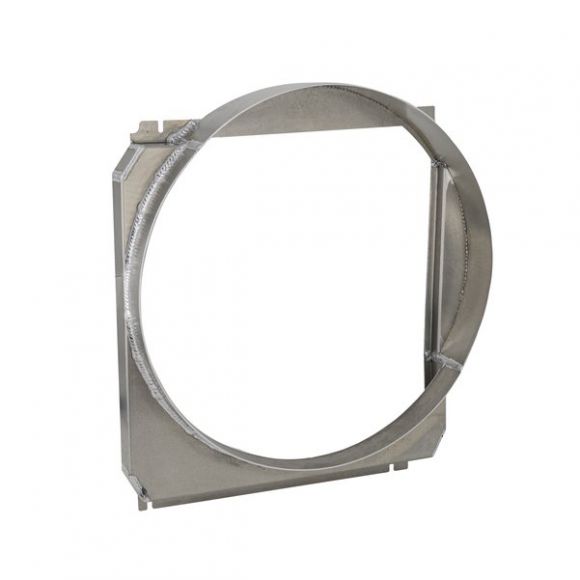

Full Circle Aluminum Radiator Fan Shroud | SBF V8 | 66-77 Ford Bronco
Can I get the dimensions on the shroud
Width, Length, depth, Etc.
Thank You,
Status:
Open Oct 16, 2020 - 05:27 PM
1answer
Answer
Oct 18, 2020 - 01:18 AM
The box portion measures 18 1/2 side to side x 17 1/2 tall x 3 5/8 thick, and a 20 fan opening. Mount points top and bottom. Top and bottom bolt c-c, side to side is 14.5. Top to bottom bolt c-c is 20. Overall depth is 3 5/8.
