Do you have a wiring diagram or wire color key for the headlight and the halo. Doing a complete body rewire so no existing harness. Thanks

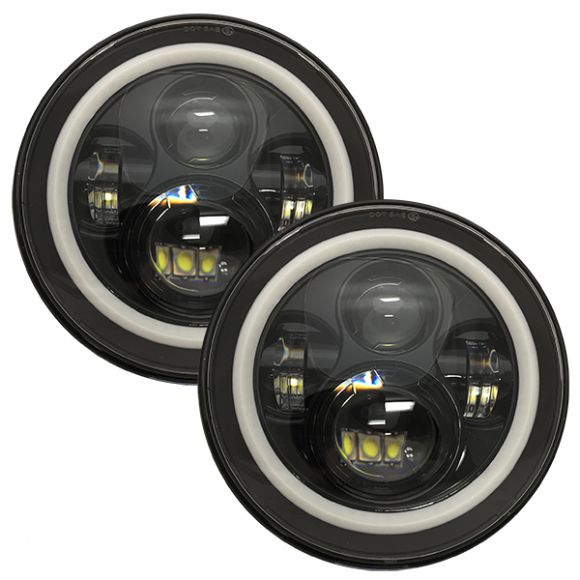

Revolution LED Headlights | Black w/Halo, 7" Round | 66-78 Bronco, 48-78 Ford Truck
Do you have a wiring diagram or wire color key for the headlight and the halo. Doing a complete body rewire so no existing harness. Thanks
Status:
Open May 09, 2024 - 05:45 PM
1answer
Answer
May 11, 2024 - 09:12 AM
The Green wire is normally tied into the Signal, and the Red wire is tied into the Park circuit. The Red and Green wires are the power wires for the Halo. Ground is supplied through the 3 prong plug. You may also run the Red to a switched 12v power and use the Halo as a daytime running light. The Green or Signal wire will flash over the Red signal.
