Answer
Aug 23, 2022 - 08:57 PM
We do not have a diagram, but the thicker bushing will be between the t-case and cross-member. The thinner bushing goes under the cross-member.
Do u guys have a diagram of how to install the mounts for the transfer case on a 73 bronco? Dana 20 Transfer Case Cross Member Mounts | 66-77 Ford Bronco
Do u guys have a diagram of how to install the mounts for the transfer case on a 73 bronco?
Status:
Open Aug 21, 2022 - 10:06 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

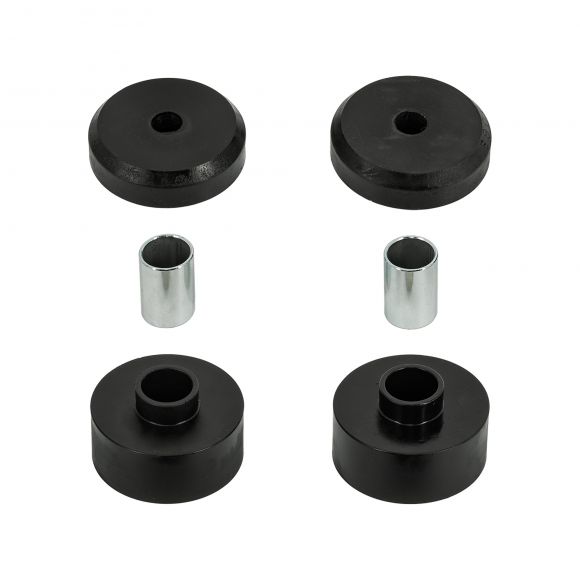

Dana 20 Transfer Case Cross Member Mounts | 66-77 Ford Bronco
Early Bronco Dana 20 Transfer Case Crossmember Mounts If you're replacing your clutch, transmission, or Dana 20 transfer case, now’s the perfect time to upgrade your crossmember mounts. This complete mount bushing kit is designed for 1966–77 Ford Bronco and includes the upper and lower rubber bu...
