Answer
Aug 20, 2019 - 07:48 AM
The core size is 19-1/4 x 18-3/4. It has 1/2 tubes on 3/8 centers. The radiator is approximately 2 1/2 thick at the top, about 2 1/4 for the core thickness.
What are the dimensions of the core: height, width, and thickness? Also, what size are the 120 tubes? I would like to see how the heat transfer surface area compares to that of the stock radiator as well as how much closer the core will be to the fan. WH Staggered 4-core Radiator, SBF V8, 66-77 Ford Bronco - Made in USA
What are the dimensions of the core: height, width, and thickness? Also, what size are the 120 tubes? I would like to see how the heat transfer surface area compares to that of the stock radiator as well as how much closer the core will be to the fan.
Status:
Open Jul 02, 2025 - 12:28 PM
Do you have the same question? Follow this Question
1answer
View More Product Details

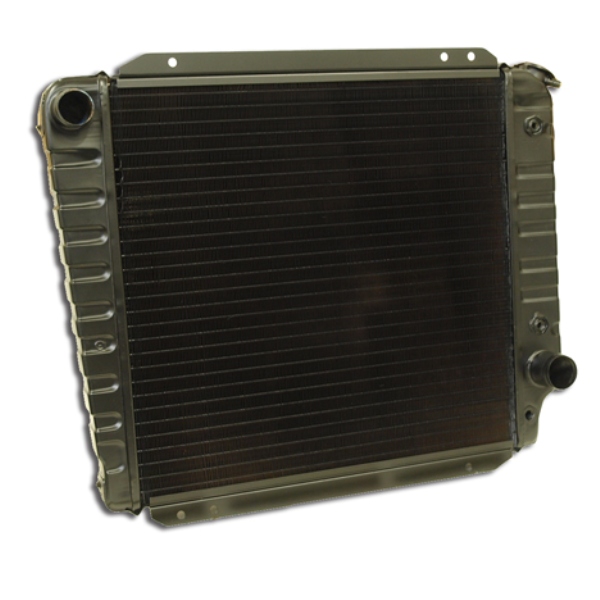

WH Staggered 4-core Radiator, SBF V8, 66-77 Ford Bronco - Made in USA
